1. Definition

A PTO Driven Hydraulic Pump is a device that uses a Power Take-Off (PTO) system to transfer engine power to the hyd pump. This pump is typically installed on the vehicle or machinery's transmission, and the PTO system delivers power from the engine to drive the pump, which powers the hydraulic system. PTO-driven hydraulic pumps are known for their efficiency and energy-saving features and are widely used in various industrial and agricultural machinery.

2. Working Principle

The working principle of a PTO-driven hydraulic pump is simple and efficient, involving the following steps:

1. Power Source: The power for the PTO pump comes from the engine of the vehicle or machinery. The engine transfers power to the PTO system through a rotating shaft.

2. Power Transmission: The PTO system transmits the engine's power to the hyd pump via the PTO shaft.

3. Hydraulic Energy Generation: The hydraulic pump converts mechanical energy into hydraulic energy, which drives the flow of hydraulic oil.

4. System Operation: The hydraulic energy powers hydraulic cylinders, motors, and other components to perform tasks such as lifting, moving, or rotating.

3. Applications

PTO-driven hydraulic pumps are used in multiple industries, with some of the main application areas including:

1. Agricultural Machinery: Such as tractors and harvesters, used to drive hydraulic lifting devices, seeders, and other hydraulic-powered equipment.

2. Construction Machinery: Like excavators, loaders, and cranes, which use PTO pumps to power hydraulic cylinders and motors for digging, loading, and lifting.

3. Transportation Industry: Trucks like dump trucks and concrete mixers use PTO pumps to operate hydraulic dumping and mixing systems.

4. Emergency Services: Fire trucks, rescue vehicles, and other emergency equipment use PTO-driven pumps to operate hydraulic rescue tools and platforms.

4. Maintenance Tips

To ensure long-term stable operation of a PTO-driven hydraulic pump, the following maintenance tips should be followed:

1. Regularly Check Hydraulic Oil: Hydraulic oil is the lifeblood of the system. Regularly check the oil level and ensure it is within the recommended range. If the oil quality deteriorates, it should be replaced.

2. Regular Filter Replacement: Hydraulic filters remove impurities from the oil to prevent them from entering the pump and motor, which could cause wear and failure. Clean or replace the filter regularly to extend the life of the system.

3. Regular Lubrication: Ensure that all moving parts are adequately lubricated to reduce friction and wear, extending the life of the pump. Check the oil's cleanliness to prevent contamination.

4. Follow Manufacturer’s Guidelines: Operate the PTO pump according to the manufacturer's recommended maintenance schedule and operating instructions to ensure optimal performance.

5. Advantages of PTO-Driven Hydraulic Pumps

1. High Efficiency and Energy Saving
   PTO-driven hydraulic pumps transfer power directly from the engine, minimizing energy loss through intermediate steps. For heavy-duty tasks, they offer higher energy conversion efficiency, saving operational costs.

2. Strong Adaptability
   PTO pumps can be used with various equipment and industries. Different pumps with varying power and flow rates can be selected based on specific needs, making them suitable for agricultural, construction, and transportation applications.

3. High Reliability
   PTO-driven hydraulic pumps are designed to be durable and reliable, making them suitable for long-term operation in harsh environments.

6. Common Types of PTO-Driven Hydraulic Pumps

1. Single-Stage Hydraulic Pumps
   These are suitable for low-pressure, low-flow applications, commonly used in small agricultural equipment or medium-sized machinery.

2. Multi-Stage Hydraulic Pumps
   These pumps provide higher pressure and flow, typically used in heavy-duty equipment such as large construction machinery and cranes.

3. Gear Pumps
   Gear pumps are commonly used in PTO-driven systems, suitable for stable flow and higher pressure applications, such as in mining equipment and heavy machinery.

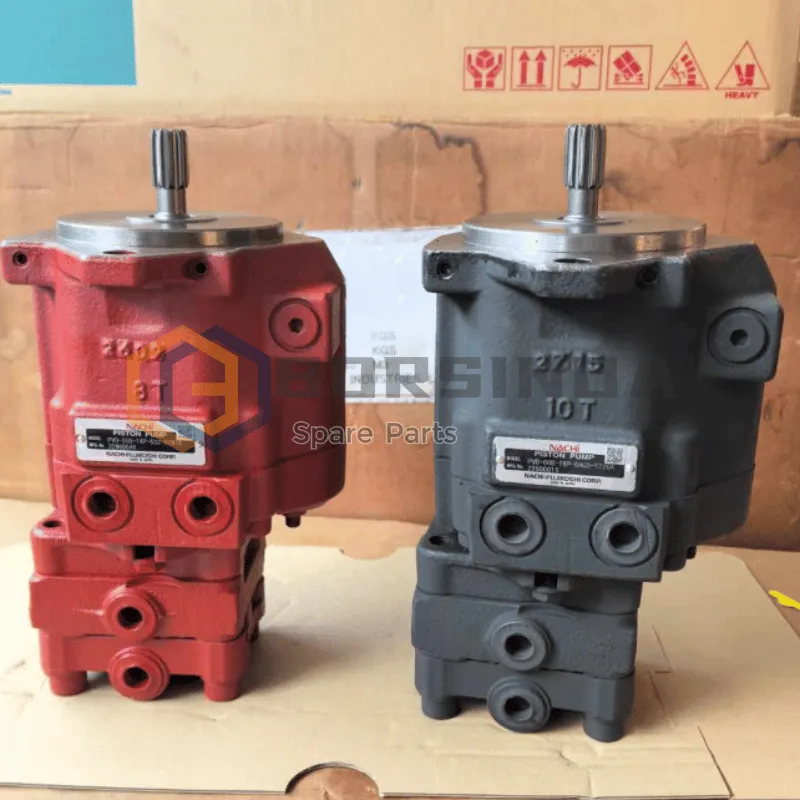

4. Piston Pumps
   Piston pumps provide higher pressure output, making them suitable for high-load applications, such as in large mining equipment.

7. Common Faults of PTO-Driven Hydraulic Pumps and Solutions

1. Reduced Pump Performance

   • Cause: Contaminated hydraulic oil, system leaks, low or high oil levels.
   • Solution: Check the quality and level of the hydraulic oil, clean or replace the oil filter, and check for leaks in the system.

2. Excessive Pump Noise

   • Cause: Air in the oil, high oil temperature, or worn internal components.
   • Solution: Check for air in the oil, ensure normal system pressure, monitor the oil temperature and viscosity, and replace worn parts.

3. Pump Fails to Start or System Malfunctions

   • Cause: PTO drive failure, loose connections, low battery power, or engine failure.
   • Solution: Inspect the PTO drive, ensure all connections are secure, check the engine and battery performance.

8. Key Considerations When Selecting a PTO Hydraulic Pump

When selecting a PTO-driven hydraulic pump, the following factors are critical:

1. Flow Requirements
   Ensure the chosen pump can provide the required flow rate. Excessive flow may cause high system pressure, while insufficient flow may not meet the operational needs.

2. Pressure Requirements
   Choose a pump that can handle the maximum working pressure of the hydraulic system to ensure stable performance.

3. Equipment Compatibility
   Ensure the PTO pump is compatible with the engine type, power output, and mounting interface of the equipment to avoid mismatches that could lead to installation difficulties or unstable performance.

4. Environmental Conditions
   For equipment working in harsh environments (high temperature, humidity, dust, etc.), choose PTO-driven hydraulic pumps designed to withstand these conditions.

9. Market Trends for PTO-Driven Hydraulic Pumps

As global industrialization accelerates, the demand for PTO-driven hyd pumps in various sectors continues to grow. Particularly in agriculture, construction, and transportation, the need for efficient, energy-saving, and environmentally friendly equipment is increasing, presenting a bright market outlook for PTO hydraulic pumps.

• Environmental Trends: With stricter environmental regulations, PTO-driven hydraulic pumps are increasingly favored for their energy efficiency and sustainability.
• Smart Technology: The application of IoT technologies is advancing, enabling real-time monitoring and management of PTO-driven hydraulic pumps, moving towards more precise and automated control systems.

Conclusion

PTO-driven hyd pumps are widely used in agriculture, construction, transportation, and emergency services due to their efficiency, energy savings, and reliability. By choosing the right pump, performing regular maintenance, and adhering to manufacturer guidelines, you can significantly enhance the performance and longevity of your hydraulic systems. Whether in agricultural irrigation or heavy machinery operations, PTO-driven pumps are essential components for efficient hydraulic work.
